CBA's Mobile
Groundwater Treatment Unit

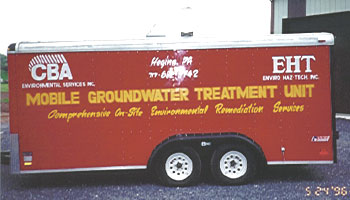

CBA's Mobile Groundwater
Treatment Unit consists of a packaged treatment system fully enclosed
within a 16 ft. long Pace® American trailer. The system has been
designed to remove free petroleum based product and dissolved volatile
organic compounds. The unit is extremely versatile and fully automated
for continuous flow operation on a variety of sites. The system is designed
for maximum flexibility, allowing the addition of specific components
as required. This system has a capacity of 30 GPM, however, CBA can
design and assemble units of various sizes to meet various specifications.
Oil/Water Separator
- Inflow capacity up to 50 GPM.
- Removal of free product down to 10 ppm of droplets > 20 microns.
- Free oil coalesces on hydropak media and rises to the surface where
it is automatically decanted by a surface skimmer.
Multi-Stage Diffuser
- Removal rates up to 99.99% of BTEX and other VOC's at inflow of up
to 50 GPM.
- 300 CFM centrifugal blower with anti-spark, explosionproof motor.
- Multiple turbulent diffused aeration cells.
Iron Removal
Filter
- Designed to remove suspended particulate and iron bacterial residue
at an inflow up to 40 GPM.
- Particulates are removed through a combination of gravity settling
and filtration on a series of non-woven fabric filter plates.
High Pressure
Bag Filter
- Fabric bag filter operates at a pressure of 150 psig to remove suspended
solids prior to carbon adsorption and subsurface injection.
Activated Carbon
- Activated carbon canisters are connected to both the effluent discharge
and the off-gas from the air stripper.
- The canisters are standard 55 gallon drums approved by DOT for shipping,
and contain up to 200 lbs of high activity carbon.
System Control
Panel
- All components are connected through the System Control Panel. Sensors
and relays monitor the operation of the system and shut down the influent
pumps if a malfunction is detected.
- The system can be fitted with a modem for automated remote monitoring
of all system components.
<
